^{FP14000 2 channel 14000w line array power amplifier}

▪ Rated Power*channels/Ω:2400W*2/8Ω(stereo power RMS)

▪4400W*2/4Ω (stereo power RMS)

▪7000W*2/2Ω (stereo power RMS)

▪8800W/8Ω (bridged power RMS)

▪14000W/4Ω (bridged power RMS)

▪ Frequency Response(Hz):20 Hz - 34 kHz

▪ Input Sensitivity(V):0.7V/1.0V/1.4V

▪ Supply Power(W): 14000W

▪ THD 20Hz - 20KHz for 1W:<0.1%

▪ Signal to Noise(dB):>112dBA

▪ Channel separation (Crosstalk) at 1KHz:>70dB

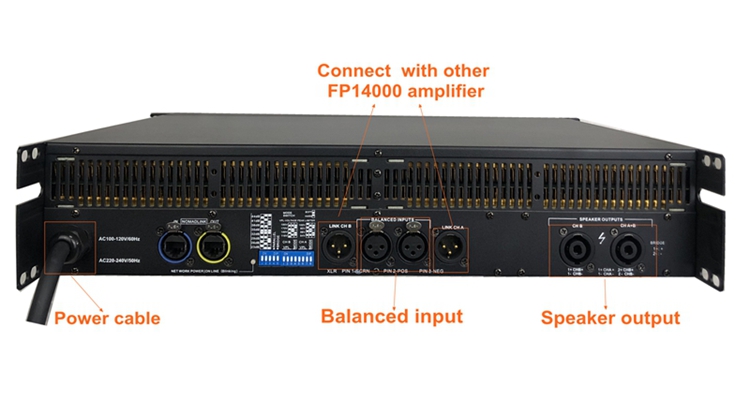

▪ Input Connectors (per channel): 3-pin XLR, electronically balanced

▪ Output Connectors (per channel): Binding Posts 2-pole

▪ Class: TD

▪ TourClass Protection: ACL, IGM, AutoRamp, short circuit, DC voltage, turn-on/off

transient, current inrush, sub/ultrasonic input

▪ Operating voltage, 230V / 115V nominalter: 130-265V / 65-135V selectable

▪ Voltage Gain (dB):23, 26, 32, 35, 38, 41, 44dB selectable

▪ Input impedance:20KOhm

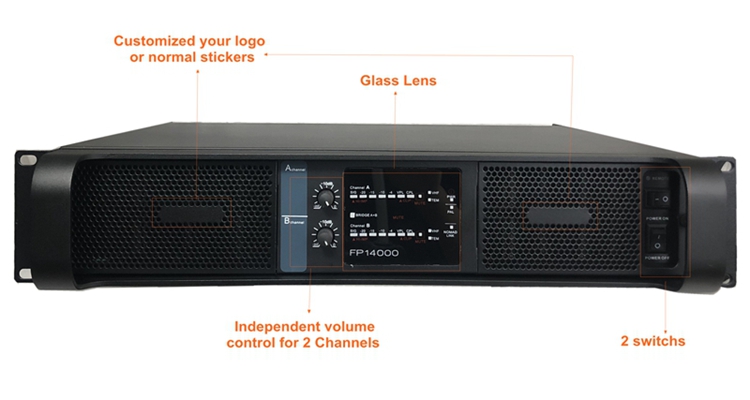

▪ Level adjustment (per ch): Front - panel potentinmeter, 31 position detented from - inf to 0dB

▪ Dimensions (W*H*D): 483x88x396mm

▪ Packing dimension: 580*180*560mm

▪ Net weight (kg) : 13.5kgs

▪ Gross weight (kg): 16kgs

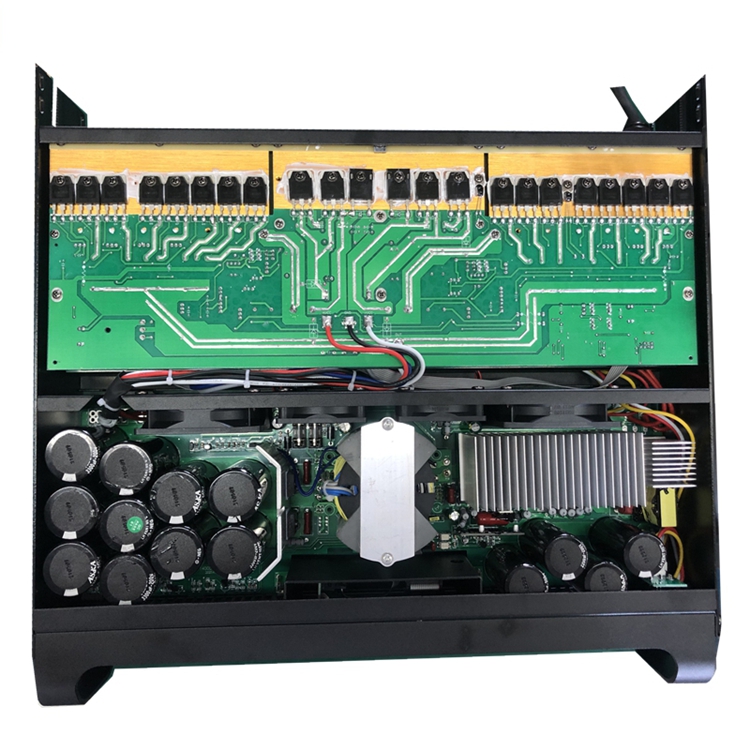

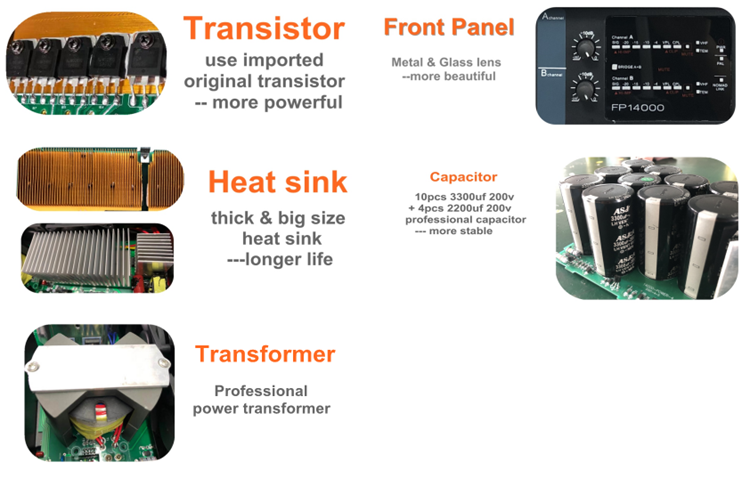

Inside phtos:
