FP10000Q

---- 4 Channel Class TD Switching power amplifier

▪ Rated Power*channels/Ω:

1350W*4/8Ω  (stereo power RMS)

2700W*4/4Ω (stereo power RMS)

2500W*4/2Ω (stereo power RMS)

4200W*2/8Ω (bridged power RMS)

5000W*2/4Ω (bridged power RMS)

▪ Frequency Response(Hz):20 Hz - 34 kHz

▪ Input Sensitivity(V):  0.7V/1.0V/1.4V

▪ Supply Power(W): 10000W

▪ THD 20Hz - 20KHz for 1W:  ≤0.1%

▪ Signal to Noise(dB):≥112dBA

▪ Channel separation (Crosstalk) at 1KHz:  >70dB

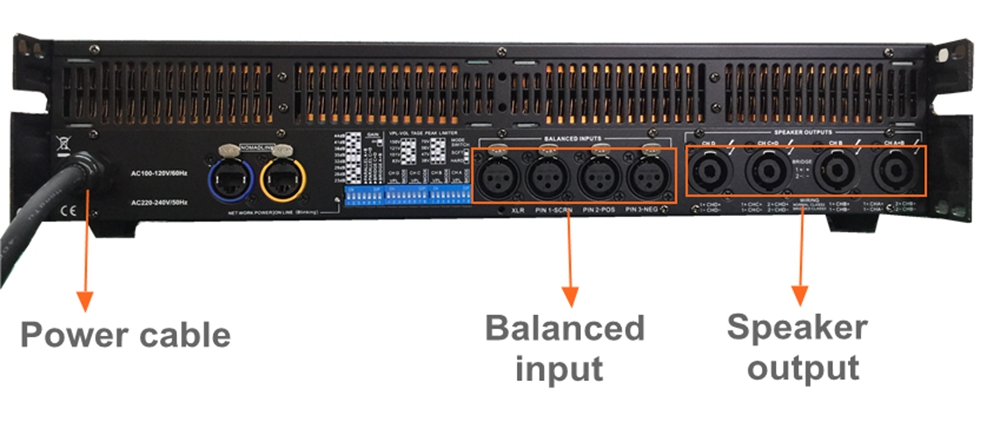

▪ Input Connectors (per channel): 3-pin XLR, electronically balanced

▪ Output Connectors (per channel)  : Binding Posts 2-pole

▪ Class: TD

▪ Tour Class Protection: ACL, IGM, Auto Ramp, short circuit, DC voltage,

turn-on/off transient, current inrush, sub/ultrasonic input

▪ Operating voltage, 230V / 115V nominalter: 130-265V / 65-135V selectable

▪ Voltage Gain (dB):  23, 26, 32, 35, 38, 41, 44dB selectable

▪ Input impedance:  20KOhm

▪ Level adjustment (per ch): Front - panel potentin meter, 31 position detented from -

inf to 0dB

▪ Dimensions (W*H*D): 483x88x396mm

▪ Packing dimension: 580*180*560mm

▪ Net weight (kg) : 13.5kgs

▪ Gross weight (kg): 16kgs

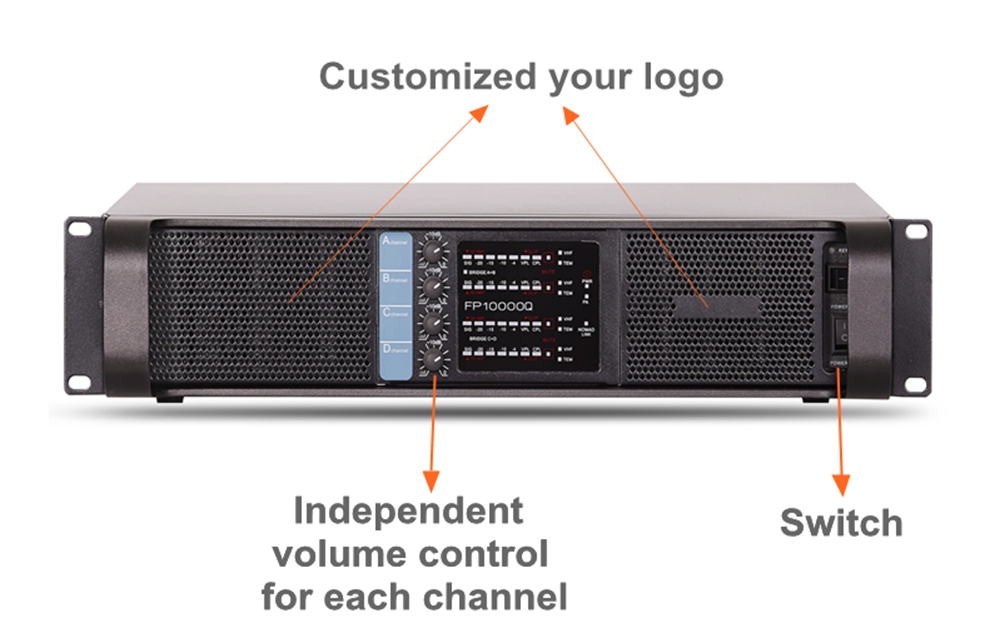

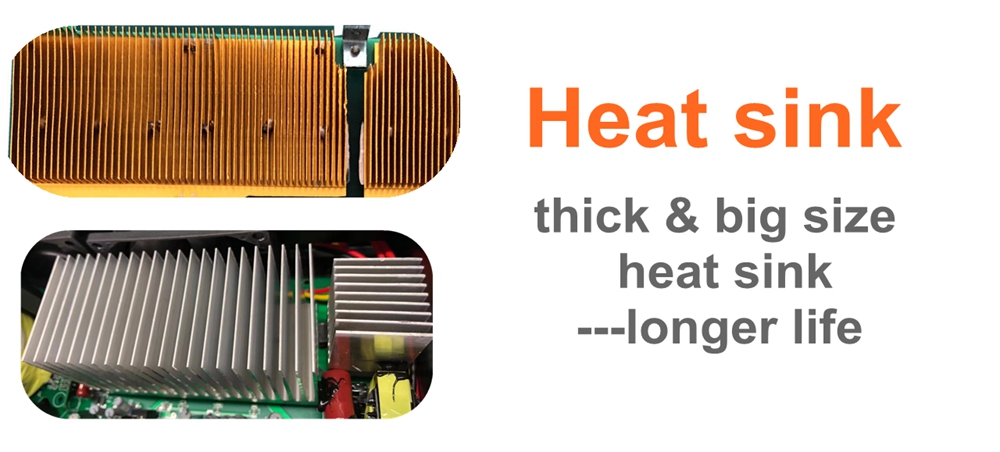

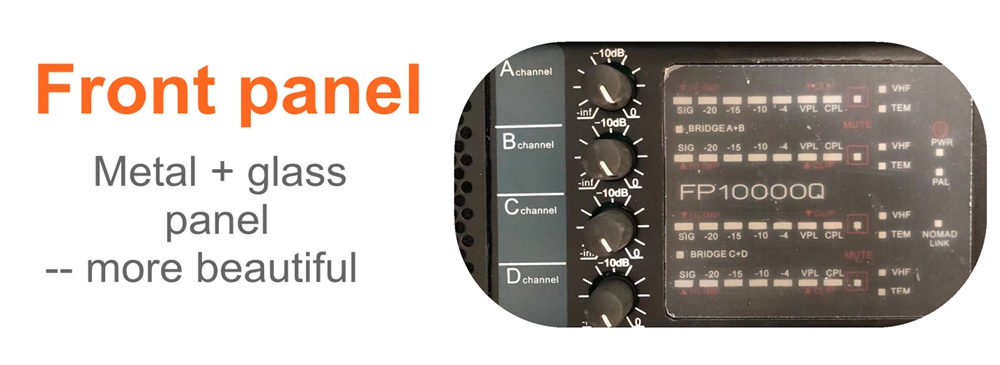

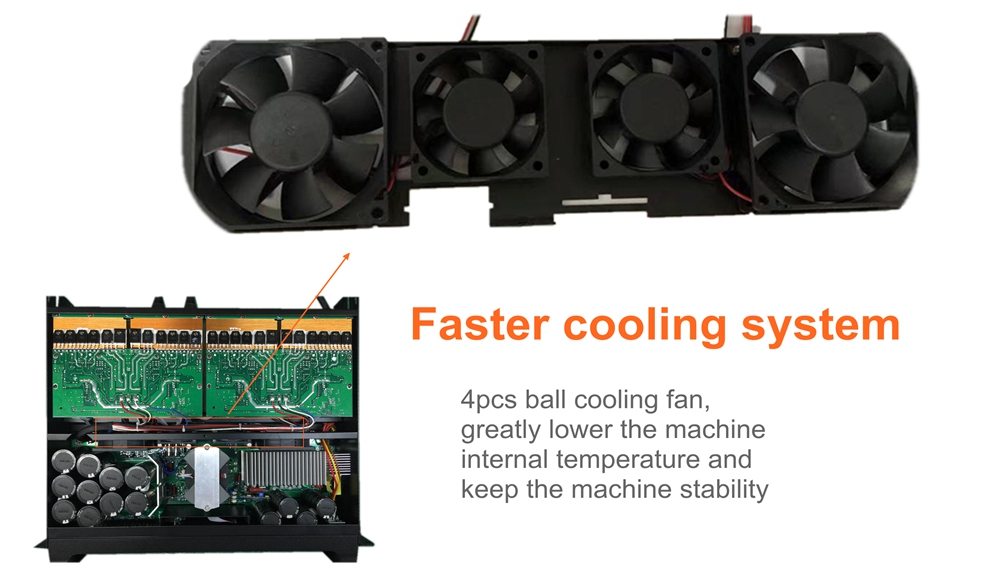

Products details:

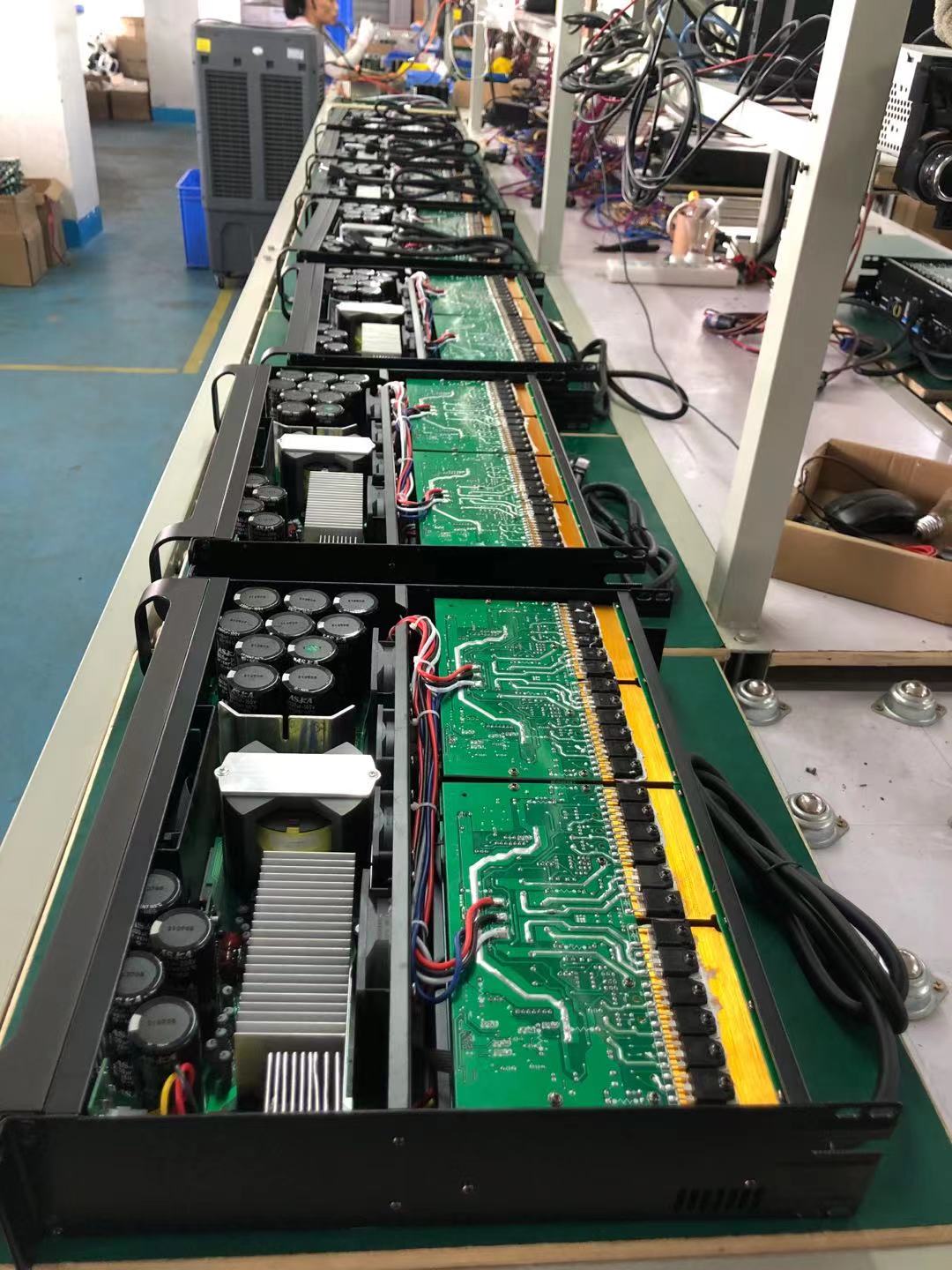

Producing:
